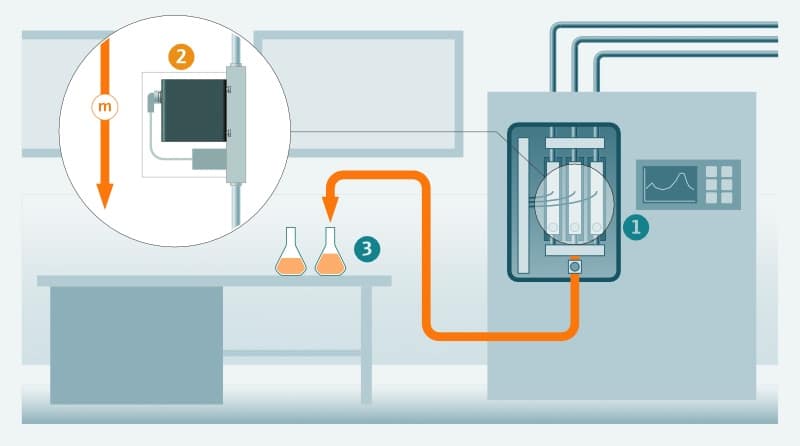

Specification
|
Details
|
|
General
|
|
|
Measured values
|
Mass flow, Density, Temperature
|
|
Units of measurement
|
Adjustable
|
|
Performance
|
|
|
Max. measurement error
|
FLT-M1_i1
|
|
- Mass flow
|
±0.10% FM
|
|
- Zero-point stability of mass flow
|
±0.0007 kg/h
|
|
- Max. deviation of mass flow
|
±0.10% or ± 0.0007 kg/h
|
|
- Density
|
±5 kg/m³
|
|
- Temperature
|
±1.0 K
|
|
- Repeatability
|
FLT-M1_i1
|
|
- Mass flow
|
±0.05% FM
|
|
- Zero-point stability of mass flow
|
±0.00035 kg/h
|
|
- Max. deviation of mass flow
|
±0.05% or ± 0.00035 kg/h
|
|
- Density
|
±2.5 kg/m³
|
|
- Temperature
|
±0.5 K
|
|
Max. measurement error
|
FLT-M1_i2
|
|
- Mass flow
|
±0.10% FM
|
|
- Zero-point stability of mass flow
|
±0.0057 kg/h
|
|
- Max. deviation of mass flow
|
±0.10% or ± 0.0057 kg/h
|
|
- Density
|
±5 kg/m³
|
|
- Temperature
|
±1.0 K
|
|
- Repeatability
|
FLT-M1_i2
|
|
- Mass flow
|
±0.05% FM
|
|
- Zero-point stability of mass flow
|
±0.00285 kg/h
|
|
- Max. deviation of mass flow
|
±0.05% or ± 0.00285 kg/h
|
|
- Density
|
±2.5 kg/m³
|
|
- Temperature
|
±0.5 K
|
|
Temperature conditions
|
|
|
Permissible medium temperature
|
-10…+70 °C
|
|
Permissible ambient temperature
|
-10…+80 °C
|
|
Permissible storage temperature
|
-20…+85 °C
|
|
Range of application
|
FLT-M1_i1
|
FLT-M1_i2
|
|
Recommended flow measuring range
|
0…30 kg/h
|
0…120 kg/h
|
|
- Pressure loss as a function of flow rate
|
Max. 100 bar (rel.)
|
Max. 100 bar (rel.)
|
|
Inlet and outlet sections
|
No influence on measuring accuracy
|
No influence on measuring accuracy
|
|
Ambient conditions
|
|
|
Climate class
|
Not specified
|
|
Electromagnetic compatibility
|
Prepared for EMC 2014/30/EU (EN 61326-1)
|
|
Vibration and shock resistance
|
Prepared for standards:
|
|
- IEC/EN 60068-2-6
|
|
- IEC/EN 60068-2-27
|
|
- IEC/EN 60068-2-31
|
|
- IEC/EN 60068-2-64
|
|
Degree of protection
|
Housing is hermetically sealed, IP protection only when installed.
|
|
Dimensions
|
FLT-M1_i1
|
FLT-M1_i2
|
|
- Size
|
100 x 30 x 104 mm³
|
135 x 36.5 x 145 mm³
|
|
Weight
|
850 g
|
2150 g
|
|
Inner diameter of measuring tube
|
1.1 mm
|
2.5 mm
|
|
Materials
|
|
|
Housing
|
Stainless steel, 1.4301 (304L)
|
|
Wetted parts
|
Stainless steel, 1.4404/1.4435 (316L)
|
|
Option wetted parts for FLT-M1_i1
|
Alloy C22, 2.4602
|
|
Fluidic interfaces
|
Manufacturer-specific connection
|
|
Electrical interfaces
|
|
|
Connection
|
Solder pins with 1 mm diameter, 7-pole
|
|
Communication
|
Modbus TTL
|
|
Power supply
|
DC 10…35 V (max. 1 Watt), No galvanic isolation
|
|
Connection pin assignment
|
|
|
- Pin 1
|
V+ (Supply voltage)
|
|
- Pin 2
|
SDA (Modbus Tx)
|
|
- Pin 3
|
SCL (Modbus Rx)
|
|
- Pin 4
|
NC (Modbus T/R)
|
|
- Pin 5
|
CDI-Rx (Serial transmission, service interface)
|
|
- Pin 6
|
CDI-Tx (Serial reception, service interface)
|
|
- Pin 7
|
GND (Reference potential for all circuits)
|
|
Certificates and approvals
|
|
|
CE mark
|
The flow sensor is intended to act as an electronic component for integration into a device or system. The flow sensor is not a stand-alone measuring device and therefore does not require the CE mark to be affixed.
|
|
RoHS
|
Compliant with RoHS Directive
|
|
Zero point adjustment
|
|
|
- Description
|
Factory calibration provides excellent zero-point stability, no general adjustment required. Adjustment may be recommended in specific conditions.
|
|
- Preconditions for adjustment
|
- Measuring line is completely shut off.
- Measuring tube is filled homogeneously and pressurized with at least 15 psi (gauge).
- During the zero-point adjustment, stability of measured flow rate is monitored.
|
|
- Duration of adjustment
|
Approximately 20 s
|
|
- Abort conditions
|
Unsuitable process conditions
|
|
Flow damping
|
PT1 system, Factory default: 0 s
|
|
Low Flow Cutoff
|
Mass flow value cut off to zero when threshold is underrun. Overruns 150% of set threshold to reset. No status message when cutoff is active.
|
|
Empty Pipe Detection
|
Detects empty or partly filled measuring tube. Sets mass flow to zero and status message when density underruns set threshold. Left when mass flow overruns 150% of set threshold (hysteresis). No status message when active.
|
