Specification
|
|
|
General
|
|
|
Measured Variables
|
- Density in kg/m³
|
|
- Temperature in °C
|
|
- Pressure in bar absolute
|
|
Derived Measured Variables (Customer-specific):
|
- Concentration of binary gas mixtures, ideal volume percentages (= molar percentages) in % standard density
|
|
- Average molar mass
|
|
- Customer-specific measured variables
|
|

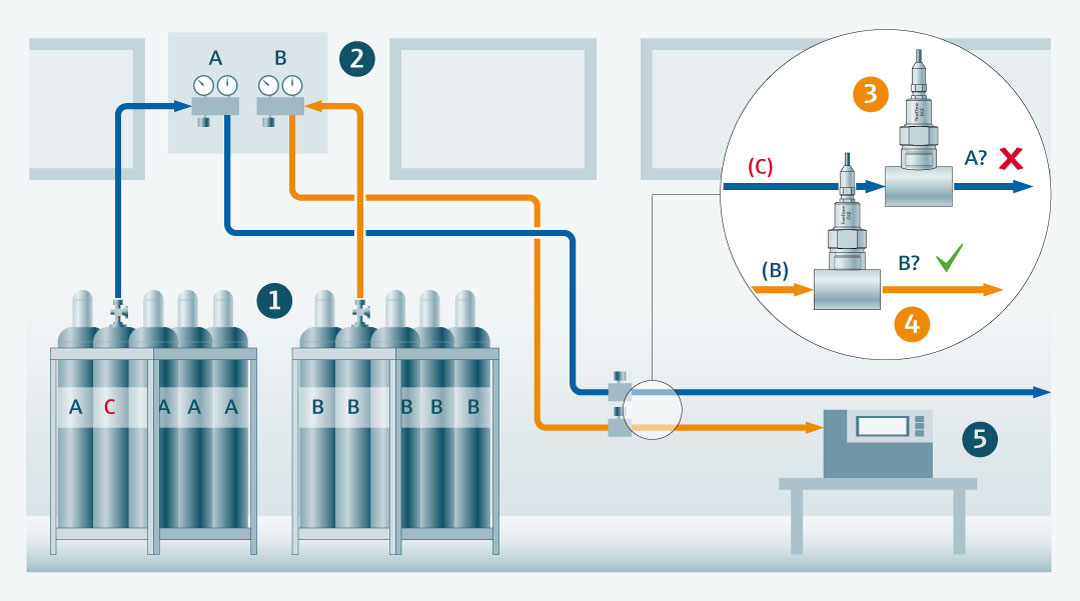

Permitted Media
|
- Hydrogen (H2)
|
|
- Helium (He)
|
|
- Nitrogen (N2)
|
|
- Oxygen (O2)
|
|
- Carbon dioxide (CO2)
|
|
- Argon (Ar)
|
|
- Other media with individual clarification
|
|

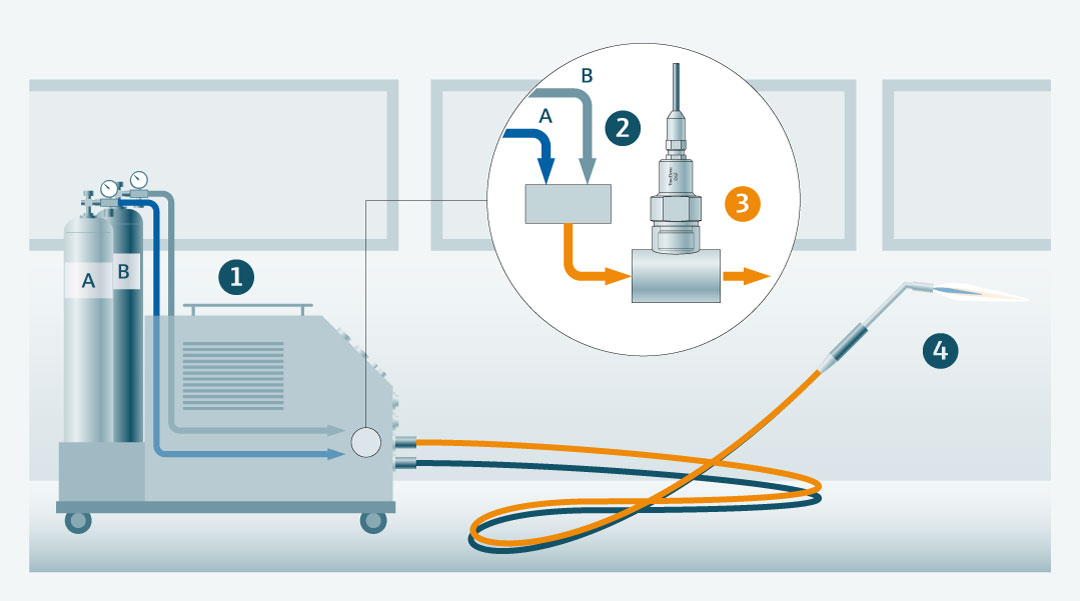

Permitted Mixtures
|
- Refer to documentation for selected mixtures
|
|
- Other mixtures with individual clarification
|
|
Performance
|
|
|
Accuracy of Measurement
|
- Density: <0.1 kg/m³
|
|
- Temperature: <0.8 °C
|
|
- Pressure: <0.04 bar
|
|
- With field calibration density: <0.05 kg/m³
|
|
Repeatability
|
- Density: <0.015 kg/m³
|
|
- Temperature: <0.06 °C
|
|
- Pressure: <0.005 bar
|
|
Temperature Conditions
|
|
|
Permitted Medium Temperature
|
-20…+60 °C
|
|
Permitted Ambient Temperature
|
-20…+60 °C
|
|
Permitted Storage Temperature
|
-20…+60 °C
|
|
Range of Application
|
|
|
Density Measurement Range
|
0.2 … 19 kg/m³
|
|
Pressure Range
|
- Max. measuring range: 1…10 bar (absolute)
|
|
- Use gas mixtures with argon (Ar)
|
|
- Bursting pressure: 30 bar
|
|
Vibrations
|
Under clarification
|
|
Environmental Conditions
|
Climate class: Not yet defined
|
|
Electromagnetic Compatibility
|
According to IEC 61326-1
|
|
Vibration and Shock Resistance
|
Not yet defined
|
|
Material
|
|
|
Housing
|
- Stainless steel: 1.4404 (316L)
|
|
Medium Wetted Material
|
- Stainless steel: 1.4404 (316L)
|
|
Electronic Board
|
|
|

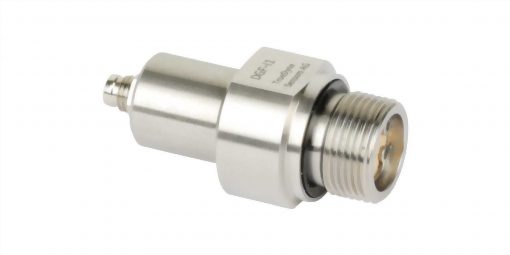

Dimensions / Design
|
|
|

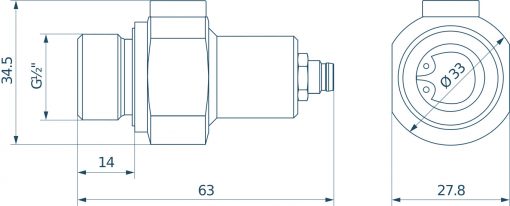

Dimensions
|
63 mm x 27.8 mm x 34.5 mm³ (with M8 plug)
|
|
Weight
|
<150 g
|
|
Degree of Protection (Installed Condition)
|
IP67 according to IEC 60529
|
|
Fluidic Interface
|
|
|
Fluidic Interfaces
|
G½” thread
|
|
Electrical Interface
|
|
|
Connection
|
M8 connection, 4-pin, according to IEC 61076-2-104
|
|
Communication
|
Continuous, RS485 hardware standard, Proprietary Modbus RTU communication protocol (see data sheet)
|
|
Power Supply
|
DC 4.5…12 V (max. 200 mW)
|
|
Cable and Plug
|
Not included in scope of delivery. Requirements for connection cable, power supply unit, and plug:
|
|
- Power supply unit with safety extra-low voltage (SELV) or protective extra-low voltage (PELV).
|
|
- M8 plug, 4-pin
|
|
- Maximum permissible cable length: 30 m
|
|
- Cable recommendation: Lumberg Automation M8 Standard Sensor / Actuator Connectors RKMWV 4-07
|
|
RS485 Interface
|
According to standard EIA/TIA-485-A
|
|
Maximum permissible voltage:
|
|
- A and B: -11 V…+15 V
|
|
- (A-B) or (B-A) with active termination: 6 V
|
|
Switchable 120 Ω termination
|
|
Integrated Filter
|
|
|
Filter
|
Sinter bronze 50 µm (theoretical pore size)
|
|
Certificates and Approvals
|
|
|
CE Mark
|
The density sensor meets the legal requirements of the EC directives. TrueDyne Sensors AG confirms the successful testing of the density sensor with the affixing of the CE mark.
|
|
RoHS
|
All installed components meet the requirements of the RoHS III directive.
|
|
Electromagnetic Compatibility
|
According to IEC 61326-1
|
|
Accessories and Spare Parts
|
|
|
Adapter Fluidic
|
Adapter “G½” thread for the fluidic interface.
|
|
Adapter Electric
|
USB-RS485 incl. M8 plug
|
|
Sealing Ring
|
Sealing ring for the replacement of a damaged sealing ring
|
|
Filter
|
Set consisting of filter, spring washer, and retaining ring for the replacement of a dirty filter.
|
